GH Series

Laser power
3-60 [kW]
Acceleration
UP To 4 [G]
Work Area
3015/4020/6025

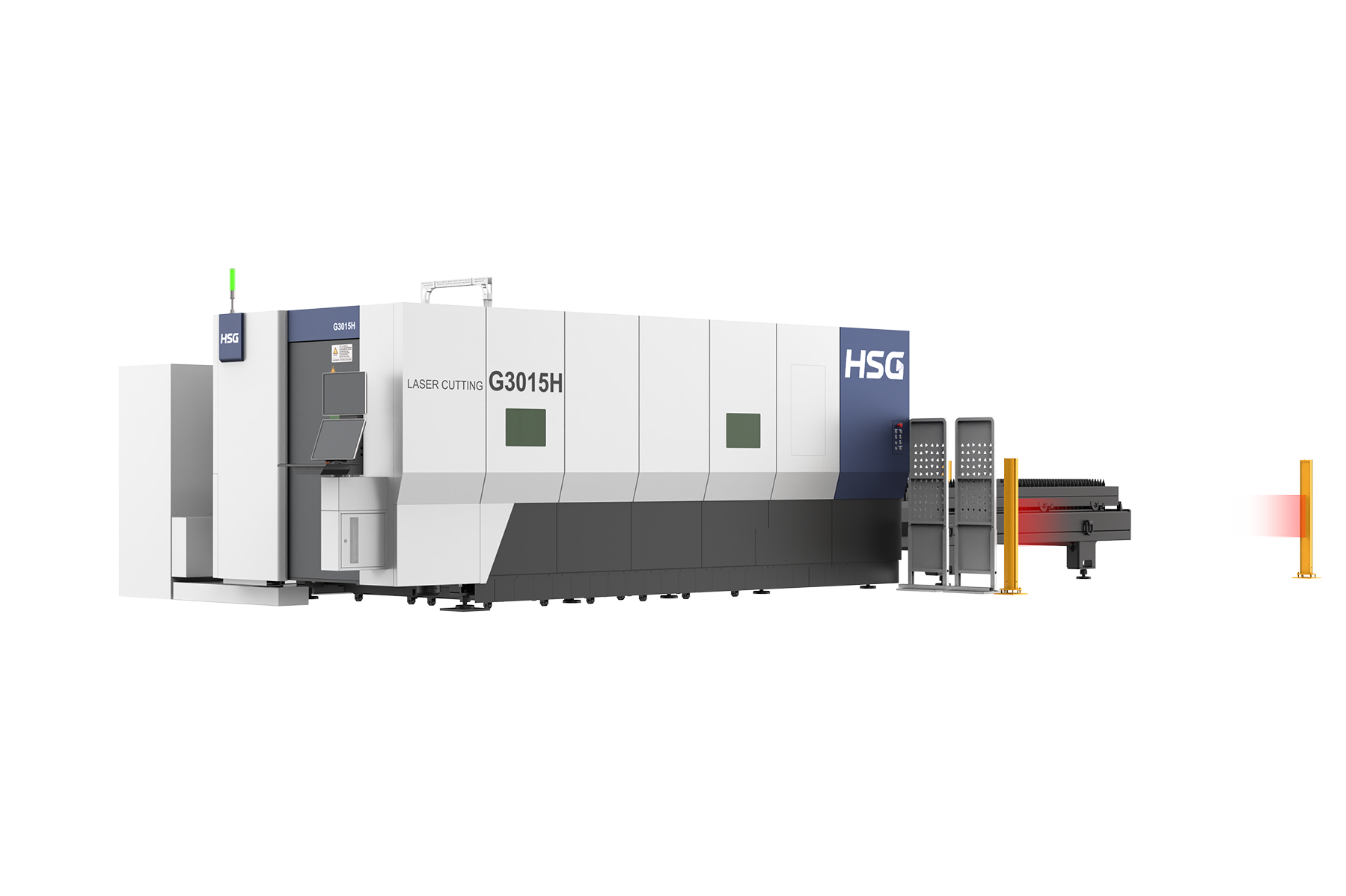

Advanced High-Power Sheet laser cutting for
Productivity and Versatility

High Dynamics + High Power = Maximum Throughput

The all-new GH Series is built to outperform—with both ultra-fast acceleration and extreme power capacity up to 60kW.

Compared to standard 12kW systems, GH delivers up to 30–40% faster cutting with significantly better gas efficiency—ideal for high-volume production environments.

High Dynamic Motion System - Up to 4G

• Premium drives and a reinforced welded frame ensure high rigidity and cutting stability, even at top speed.

• Acceleration of up to 4G (G3015H) and positioning speeds up to 200m/min.

• Real-time adaptive control enables faster cornering and tighter contours without compromising precision.

High-Power Laser Cutting – Up to 60kW

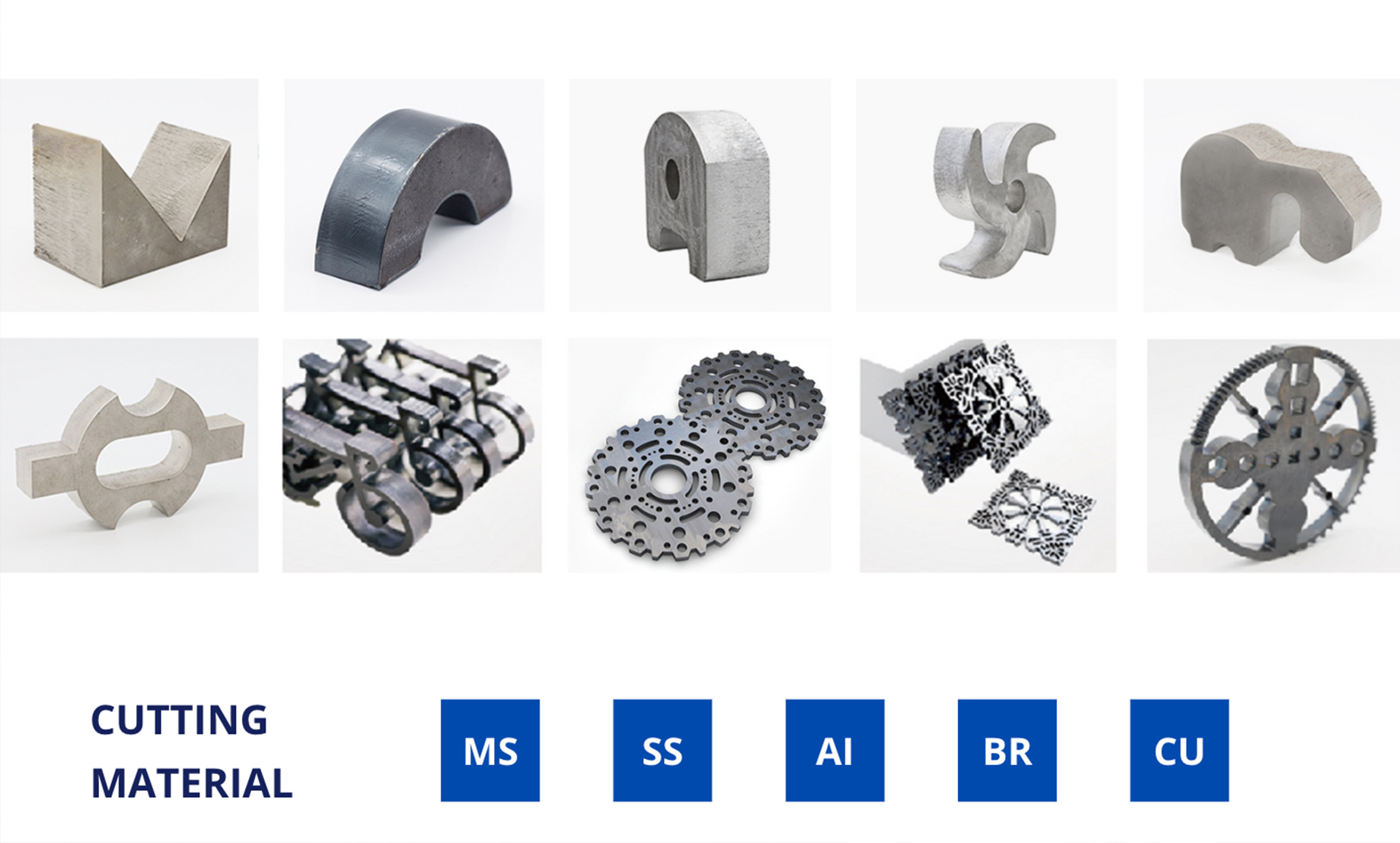

• Cut carbon steel up to 100mm, stainless steel up to 120mm, and aluminum up to 90mm with unmatched edge quality.

• Smart piercing technology (e.g. Lightning Piercing, 25-Level Piercing Control) ensures efficient processing of thick materials with reduced slag and minimal rework.

• Dual beam spot technology and beam shaper modules adapt automatically for thin-to-thick material transitions.

Enhanced Production With Cutting Edge AR Support（Optional）

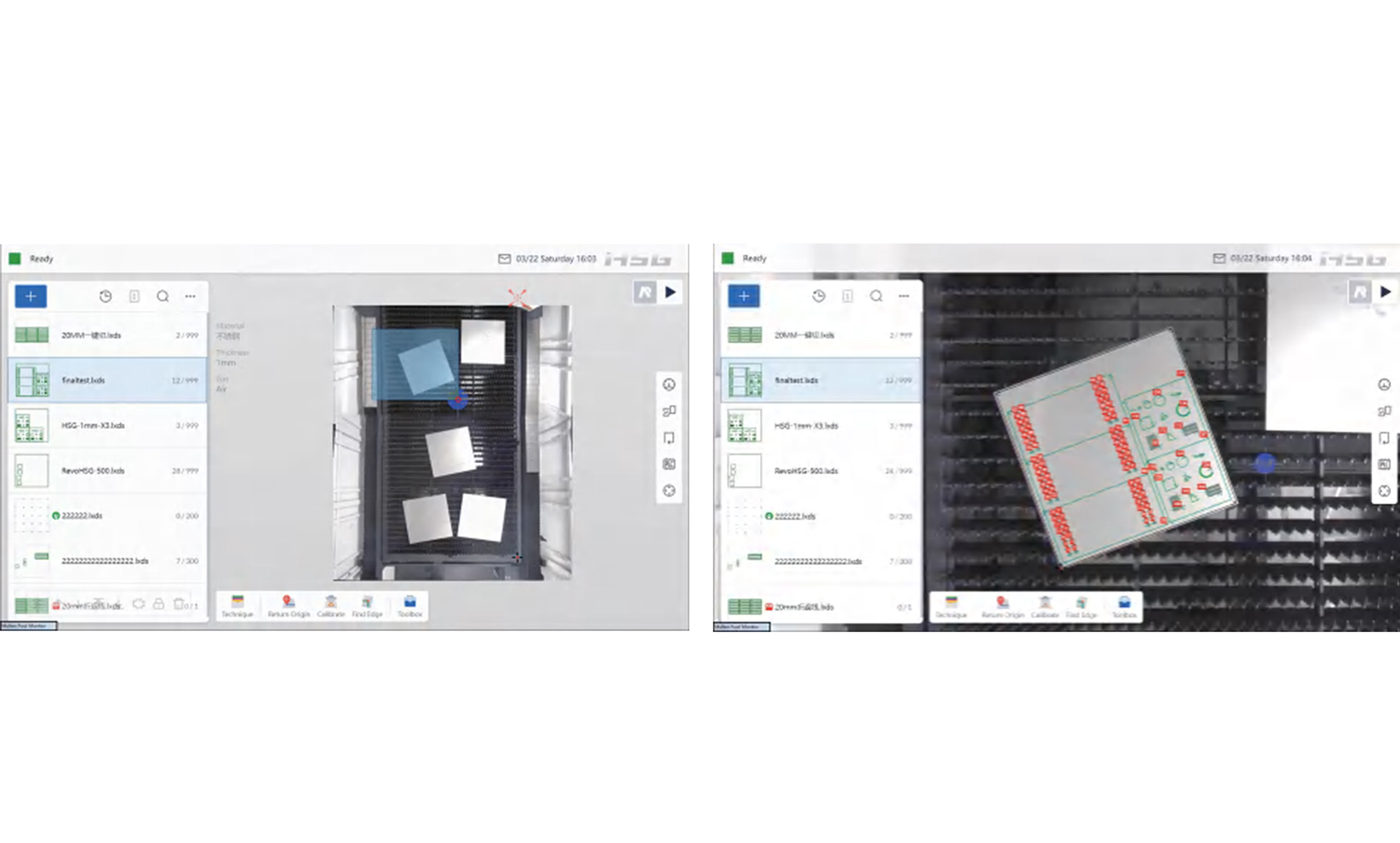

Equipped with visual AR recognition technology, it can automatically recognize the contour of the sheet, and supports multitasking processing within the list, reducing production waiting time and labor costs.

Easy Operation, High Throughput

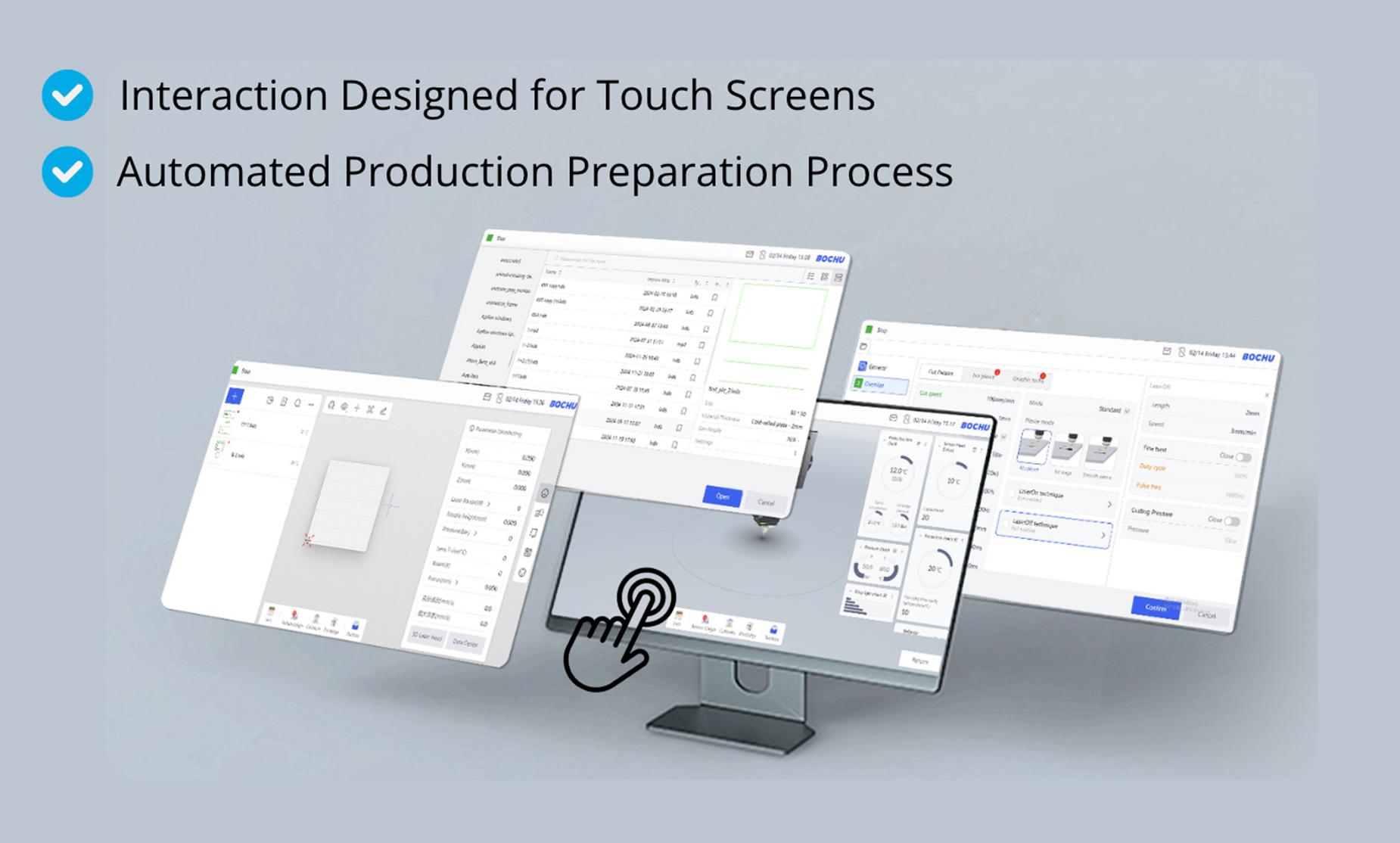

The GH Series runs on HSG’s all-new Alpha T Plus Bus System—a smart, robust control platform designed for ease of use. With its touchscreen interface and smartphone-style navigation, operating your laser cutter is as easy as using an iPad.

• Clean UI, swipe-and-tap operation

• Minimal training required

• Rapid onboarding for any operator

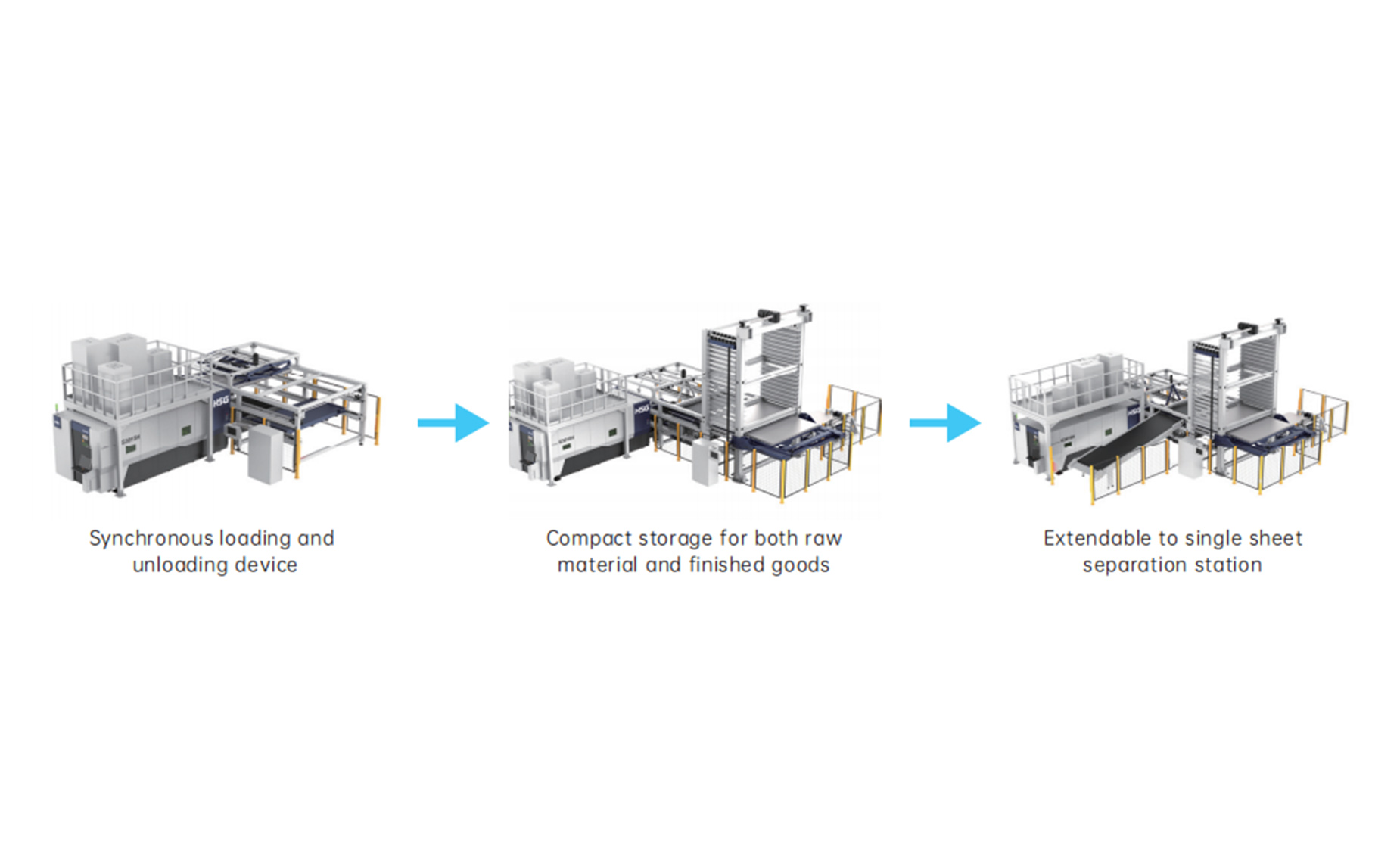

Seamless Integration with HSG Store Pro（Optional）

Easily expand to automated production systems to increase your equipment utilization.Boost your productivity with our affordable automation solutions.

GH Technical Specifications

For more details, feel free to reach out to us!

Model	G3015H	G4020H	G6025H
Laser Power	3-30kW	3-60kW	6-60kW
Cutting Area(Length×Width)	3100mmx1550mm	4100mm× 2050mm	6200mm× 2550mm
Maximum Acceleration	4G	2.8G	2.8G
Max. Linkage Speed	200m/min	200m/min	200m/min
